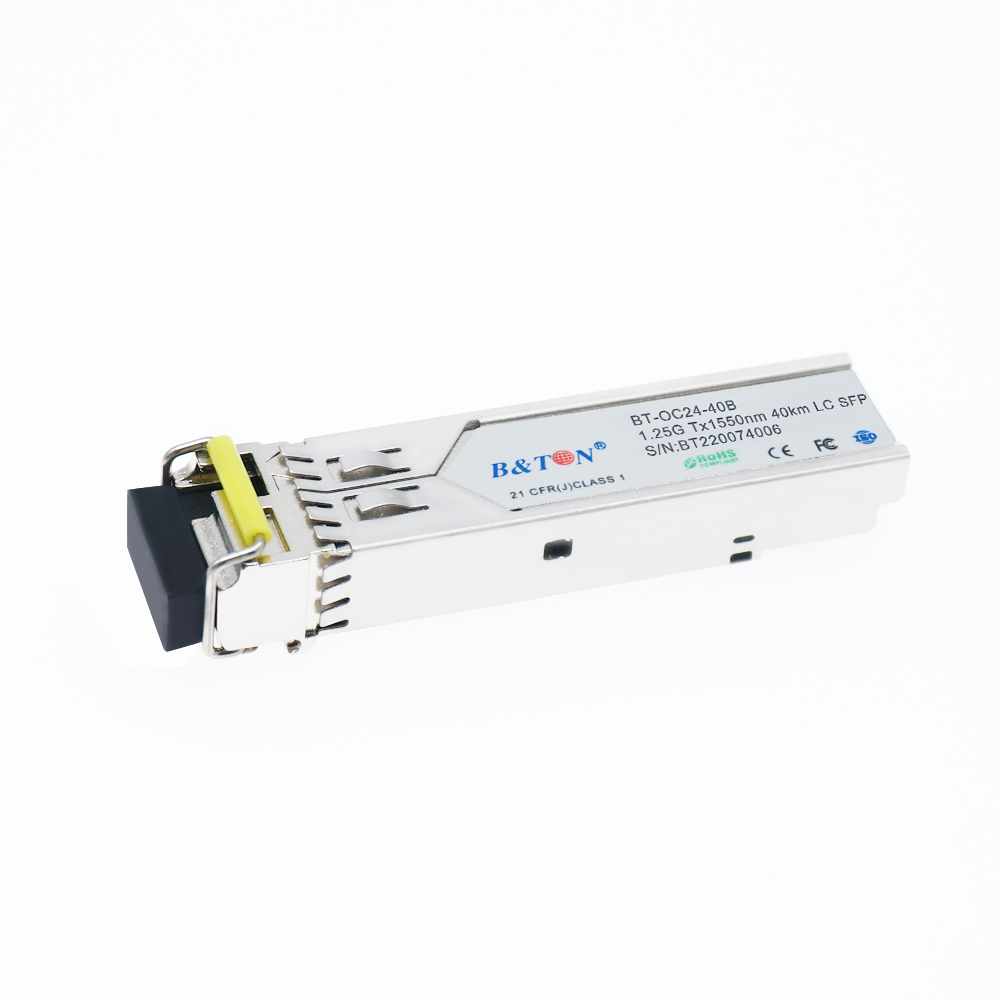

1.25G Tx1550/Rx1310nm 40km SFP Transceiver

Features

* Dual data-rate of 1.25Gbps/1.063Gbps operation

* 1550nm DFB laser and PIN photodetector for 40km transmission

* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

* Digital Diagnostic Monitoring: Internal Calibration or External Calibration

* Compatible with SONET OC-24-LR-1

* Compatible with RoHS

* +3.3V single power supply

* Operating case temperature: 0 to +70°C / -40~85℃

Applications

* Gigabit Ethernet

* Fiber Channel

* Switch to Switch interface

* Switched backplane applications

* Router/Server interface

* Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF.

 The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
