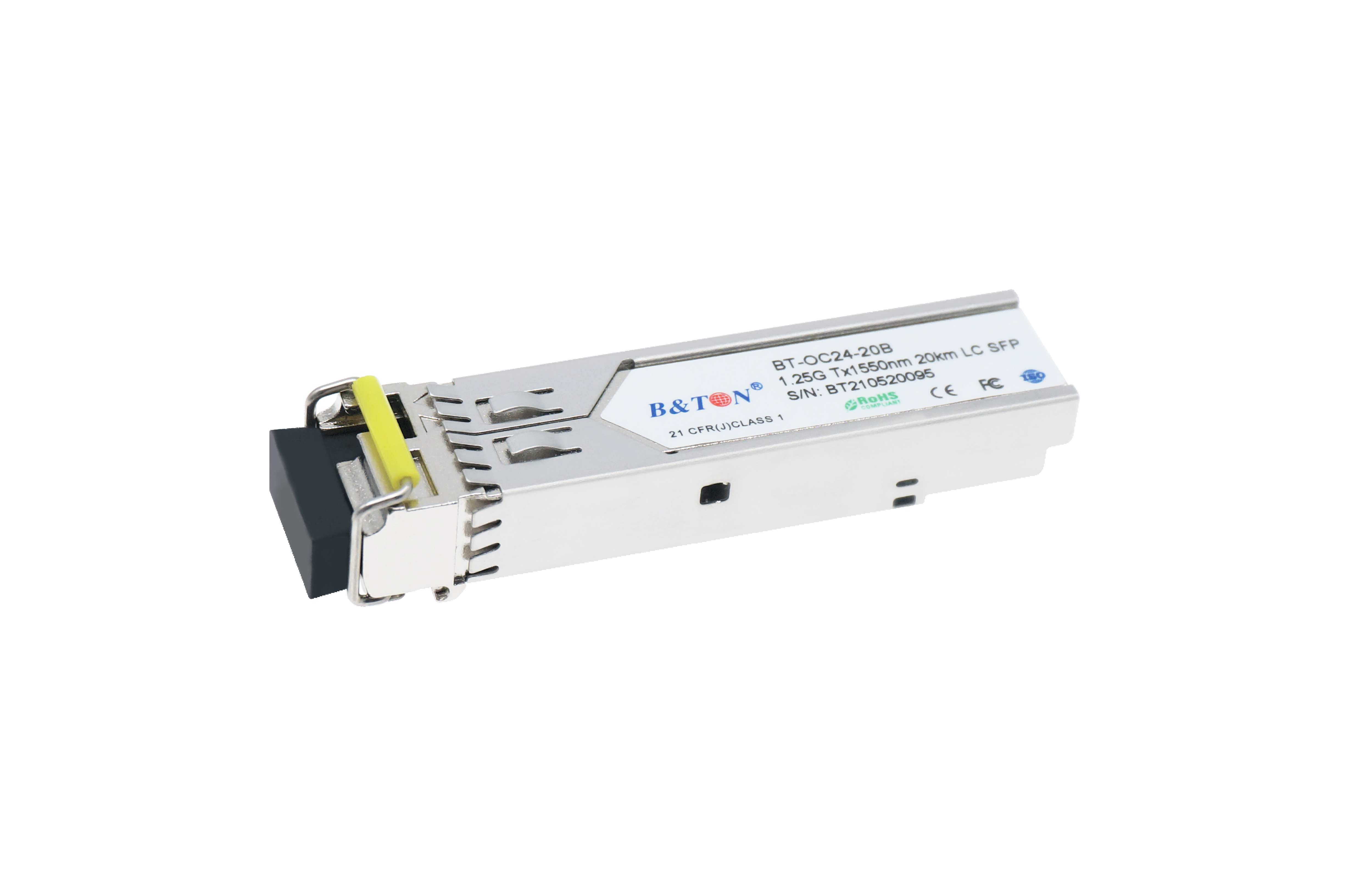

1.25Gbps Tx1550/Rx1310nm 20km SFP Bi-Directional Transceiver

Features

>> Dual data-rate of 1.25Gbps/1.063Gbps operation

>> 1550nm DFB laser and PIN photodetector for 20km transmission

>> Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

>> Digital Diagnostic Monitoring:

  Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

>> Compatible with RoHS

>> +3.3V single power supply

Applications

>> Gigabit Ethernet

>> Fiber Channel

>> Switch to Switch interface

>> Switched backplane applications

>> Router/Server interface

>> Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

 The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
